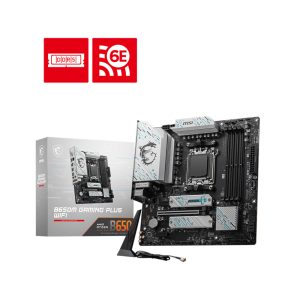

Bo Mạch Chủ MSI B650M Gaming Plus Wifi DDR5

Name: Bo Mạch Chủ MSI B650M Gaming Plus Wifi DDR5 - Nhật Phương PC
SKU: MSI-B650M-GM-PLUS-WF
Price: 4690000 VND
Availability: InStock

Bo Mạch Chủ MSI B650M Gaming Plus Wifi DDR5

Mã SP: MSI-B650M-GM-PLUS-WF | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (4 đánh giá)

Bo Mạch Chủ MSI B650M Gaming Plus Wifi DDR5

Giá gốc: 4.690.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 4.690.000 ₫)

4.690.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: AMD B650
Socket: AMD AM5
Kích thước: Micro-ATX
Số khe RAM: 4

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo Mạch Chủ MSI B650M Gaming Plus Wifi DDR5

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Thương hiệu	MSI
Model	B650M Gaming Plus Wifi
CPU hỗ trợ	AMD AM5
Chipset	Chipset AMD B650
RAM hỗ trợ	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Đồ họa	1 x Display Port 1.4 1 x cổng HDMI 2.1, tối đa độ phân giải 4K @ 60Hz
Khe mở rộng	2x PCI-E x16 slot • Supports x16/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Hỗ trợ ổ cứng	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
Cổng kết nối phía trong	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Cổng kết nối (Back Panel)	DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Audio connectors
LAN	1 x Realtek 2.5Gb Ethernet
WIRELESS & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Kích thước	mATX 243.84mmx243.84mm
