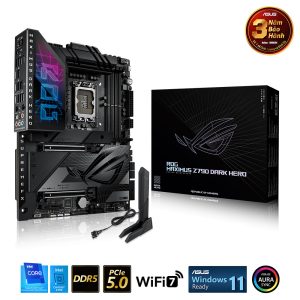

Bo Mạch Chủ ASUS ROG Maximus Z790 DARK HERO

Name: Bo Mạch Chủ ASUS ROG Maximus Z790 DARK HERO - Nhật Phương PC
SKU: SP130432
Price: 16990000 VND
Availability: InStock

Giảm giá!

Bo Mạch Chủ ASUS ROG Maximus Z790 DARK HERO

Mã SP: SP130432 | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (2 đánh giá)

Bo Mạch Chủ ASUS ROG Maximus Z790 DARK HERO

Giá gốc: 17.990.000 ₫

Giá khuyến mãi: 16.990.000 ₫(Tiết kiệm: 1.000.000 ₫)

Mô tả tóm tắt sản phẩm

Chipset: Intel Z790 Refesh
Socket: Intel LGA 1700
Kích thước: ATX
Số khe RAM: 4

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo Mạch Chủ ASUS ROG Maximus Z790 DARK HERO

Thông số kỹ thuật Bo Mạch Chủ ASUS ROG Maximus Z790 DARK HERO WIFI 7 (M2, HDMI, USB Type-C)

Thương hiệu	ASUS
Model	ROG MAXIMUS Z790 DARK HERO
CPU hỗ trợ	Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^®Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790 Refesh
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Hỗ trợ đồ họa	1 x HDMI^TM port 2 x Intel^® Thunderbolt™ 4 ports (USB Type-C^®) support DisplayPort and Thunderbolt™ video outputs* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in HDMI 2.1. * VGA resolution support depends on processors’ or graphic cards’ resolution.
Ram hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel^® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supports DIMM Flex * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Khe cắm mở rộng	Intel^® Core^TM Processors (14^th & 13^th & 12^th Gen)* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel^® Z790 Chipset** 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only. – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Ổ cứng	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^® Core^TM Processors (14^th & 13^th & 12^th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel^® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
WIFI & Bluetooth	Intel^® Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band* Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth^® v5.4**** * Compatible with Windows 11 or later. Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB	Rear USB (Total 12 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C^®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C^® with up to 60W PD/QC4+)** 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C^® power delivery output: max. 5V/3A * USB Type-C^® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Âm thanh	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – ESS^® ES9218 QUAD DAC – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Kết nối	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x 8-pin PCIe power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C^®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x ReTry button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x CPU over voltage jumper 1 x Alternative PCIe mode switch
Kết nối sau	2 x Thunderbolt™ 4 USB Type-C^® ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI^TM port 1 x Wi-Fi Module 1 x Intel^® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button
LAN	1 x Intel^® 2.5Gb Ethernet ASUS LANGuard
Tính năng đặc biệt	Extreme OC Kit – FlexKey button – ReTry button – Start button Extreme Engine Digi+ – 10K Black metallic capacitors – MicroFine alloy choke ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header(s) – Addressable Gen 2 header(s) Front Panel USB 20G with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to 8-pin PCIe power connector or else only 27W will be supported.
Tính năng phần mềm	ROG Exclusive Software – ROG CPU-Z – DTS^® Sound Unbound – Internet Security (1 year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – Two-Way AI Noise Cancelation – Power Saving – Sonic Studio AI Suite 3 – Easy Optimization with AI Overclocking – TPU – DIGI+ Power Control – Turbo app – PC Cleaner MyAsus USB Wattage Watcher Intel^® Unison™ Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey MemTest86
Khả năng quản lý	WOL by PME, PXE
Phụ kiện	Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 fan holder Miscellaneous 1 x ASUS WiFi Q-Antenna 3 x M.2 backplate Q-Latch packages 3 x M.2 backplate Rubber Packages 1 x Q-connector 1 x ROG stickers 1 x ROG key chain 1 x M.2 rubber package 1 x ROG VIP card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Hệ điều hành hỗ trợ	Windows^® 11, Windows^® 10 64-bit
Kích cỡ	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
