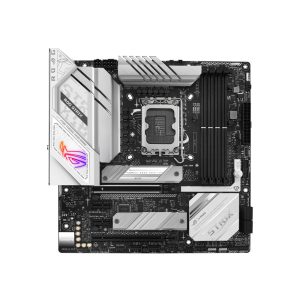

Bo mạch chủ Asus ROG Strix B760-G Gaming Wifi DDR5 03/2025

Mã SP: | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (0 đánh giá)

Bo mạch chủ Asus ROG Strix B760-G Gaming Wifi DDR5 03/2025

Giá gốc: 6.370.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 6.370.000 ₫)

6.370.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: Intel® B760
Socket: Intel LGA 1700
Kích thước: m-ATX
Số khe RAM: 4 DDR5

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo mạch chủ Asus ROG Strix B760-G Gaming Wifi DDR5 03/2025

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Hãng	Asus
Model	ROG Strix B760-G Gaming Wifi DDR5
CPU	Intel^® Socket LGA1700 for 13th Gen Intel^® Core™ Processors & 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors
Chipset	Intel^® B760 Chipset
Memory	4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
Graphics	1 x DisplayPort 1 x HDMI^®* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support 4K@60Hz as specified in DisplayPort 1.4 * Support 4K@60Hz as specified in HDMI 2.1.
Expansion	Intel^® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot(s) Intel^® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots
Ổ cứng	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Intel^® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth^® v5.3
USB	Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C^®) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Audio cover
Back Panel I/O Port	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C^®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x HDMI^® port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel^® 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4^®) header
Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Documentation 1 x User manual
Khuôn mẫu	24.4 cm x 24.4 cm
