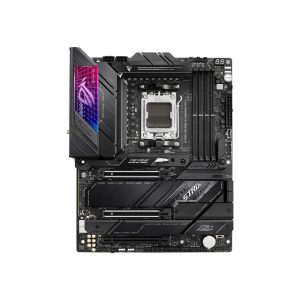

Bo Mạch Chủ Asus ROG STRIX X670E-E GAMING WIFI

Name: Bo Mạch Chủ Asus ROG STRIX X670E-E GAMING WIFI - Nhật Phương PC
SKU: SP1759264
Price: 14390000 VND
Availability: InStock

Bo Mạch Chủ Asus ROG STRIX X670E-E GAMING WIFI

Mã SP: SP1759264 | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (3 đánh giá)

Bo Mạch Chủ Asus ROG STRIX X670E-E GAMING WIFI

Giá gốc: 14.390.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 14.390.000 ₫)

14.390.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: AMD X670
Socket: AMD AM5
Kích thước: ATX
Số khe RAM: 4

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo Mạch Chủ Asus ROG STRIX X670E-E GAMING WIFI

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	ROG STRIX X670E-E GAMING WIFI
Chipset	AMD X670
CPU hỗ trợ	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Bộ nhớ	4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Đồ họa	1 x DisplayPort* 1 x HDMI^® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1.
Khe cắm mở rộng	AMD Ryzen™ Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Lưu trữ	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)) AMD X670 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet	1 x Intel^{^®} 2.5Gb Ethernet ASUS LANGuard
Không dây & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. **The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
USB	Rear USB (Total 13 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^{^®}) 12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x USB Type-C^{^®}) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Âm Thanh	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Cổng I/O sau	1 x USB 3.2 Gen 2x2 port (1 x Type-C^{^®}) 12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C^{^®}) 1 x DisplayPort 1 x HDMI^® port 1 x Wi-Fi Module 1 x Intel^® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack^™ button 1 x Clear CMOS button
Đầu nói I/O nội bộ	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Alteration Mode Switch 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Massive M.2 Heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Tính năng phần mềm	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS^® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Accessories	Cables 2x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Massive M.2 Heatsink 1 x M.2 Q-Latch package for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG Graphics card holder 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card Documentation 1 x User guide
Hệ điều hành	Windows^{^®} 10 64-bit, Windows^{^®} 11 64-bit
Dạng	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	ROG STRIX X670E-E GAMING WIFI
Chipset	AMD X670
CPU hỗ trợ	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Bộ nhớ	4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Đồ họa	1 x DisplayPort* 1 x HDMI^® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1.
Khe cắm mở rộng	AMD Ryzen™ Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes) AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Lưu trữ	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)) AMD X670 Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet	1 x Intel^{^®} 2.5Gb Ethernet ASUS LANGuard
Không dây & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. **The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
USB	Rear USB (Total 13 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^{^®}) 12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x USB Type-C^{^®}) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Âm Thanh	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Cổng I/O sau	1 x USB 3.2 Gen 2x2 port (1 x Type-C^{^®}) 12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C^{^®}) 1 x DisplayPort 1 x HDMI^® port 1 x Wi-Fi Module 1 x Intel^® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack^™ button 1 x Clear CMOS button
Đầu nói I/O nội bộ	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Alteration Mode Switch 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Massive M.2 Heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Tính năng phần mềm	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS^® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Accessories	Cables 2x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Massive M.2 Heatsink 1 x M.2 Q-Latch package for M.2 backplate 1 x M.2 Q-Latch package 1 x ROG Graphics card holder 2 x Rubber Packages for M.2 1 x Rubber Package for M.2 backplate 1 x ROG key chain 1 x ROG Strix sticker 1 x ROG Strix thank you card Documentation 1 x User guide
Hệ điều hành	Windows^{^®} 10 64-bit, Windows^{^®} 11 64-bit
Dạng	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
