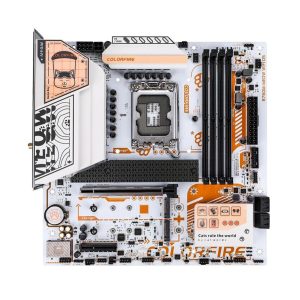

Bo mạch chủ Colorfire B760M-MEOW Wifi DDR5 ORANGE – Chính hãng 03/2025

Name: Bo mạch chủ Colorfire B760M-MEOW Wifi DDR5 ORANGE - Chính hãng 03/2025 - Nhật Phương PC
SKU: B760M-MEOW-WF
Price: 3990000 VND
Availability: InStock

Bo mạch chủ Colorfire B760M-MEOW Wifi DDR5 ORANGE – Chính hãng 03/2025

Mã SP: B760M-MEOW-WF | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (2 đánh giá)

Bo mạch chủ Colorfire B760M-MEOW Wifi DDR5 ORANGE – Chính hãng 03/2025

Giá gốc: 3.990.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 3.990.000 ₫)

3.990.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: Intel B760
Socket: Intel LGA 1700
Kích thước: M-ATX
Số khe RAM: 4

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo mạch chủ Colorfire B760M-MEOW Wifi DDR5 ORANGE – Chính hãng 03/2025

Bo mạch chủ Colorfire B760M-MEOW Wifi DDR5 Orange

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Model	COLORFIRE B760M-MEOW WIFI D5 ORANGE
Product Series	COLORFIRE Series
Chipset	Intel B760
Processor	Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor (* Please visit www.colorful.cn for the latest processor support list)
Memory	Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) - DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports	A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)
Board I/O	Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces (audio input/audio output/microphone) - 1×BIOS update button On board device interface: - 1×CPU fan pin - 3×system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper
Expansion Slots	1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot
BIOS	128M UEFI, supporting multiple languages
Power Management	Support S3, S4, network S5 wake-up, regular power on and power on
Hardware Monitor	CPU fan speed is controllable, system fan speed is controllable（Fan1 supports independent control and Fan2 and Fan3 share control）, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN	RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2
Audio	5.1 Channel sound card
Configuration	M-ATX 245mm x 245mm

Model	COLORFIRE B760M-MEOW WIFI D5 ORANGE
Product Series	COLORFIRE Series
Chipset	Intel B760
Processor	Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor (* Please visit www.colorful.cn for the latest processor support list)
Memory	Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) - DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports	A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)
Board I/O	Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces (audio input/audio output/microphone) - 1×BIOS update button On board device interface: - 1×CPU fan pin - 3×system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pins - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB light effect control jumper
Expansion Slots	1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot
BIOS	128M UEFI, supporting multiple languages
Power Management	Support S3, S4, network S5 wake-up, regular power on and power on
Hardware Monitor	CPU fan speed is controllable, system fan speed is controllable（Fan1 supports independent control and Fan2 and Fan3 share control）, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN	RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2
Audio	5.1 Channel sound card
Configuration	M-ATX 245mm x 245mm
