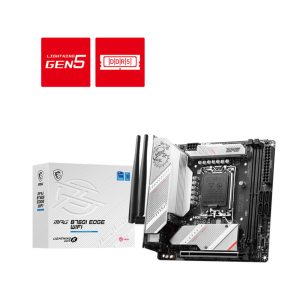

Bo Mạch Chủ MSI MPG B760I EDGE WIFI ( M.2, HDMI, DP, Type C)

Mã SP: | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (3 đánh giá)

Bo Mạch Chủ MSI MPG B760I EDGE WIFI ( M.2, HDMI, DP, Type C)

Giá gốc: 4.950.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 4.950.000 ₫)

4.950.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: Intel B760
Socket: Intel LGA 1700
Kích thước: Mini-ITX
Số khe RAM: 2 DDR5

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo Mạch Chủ MSI MPG B760I EDGE WIFI ( M.2, HDMI, DP, Type C)

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên hãng	MSI
Model	MPG B760I EDGE WIFI
CPU hỗ trợ	Intel®
Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Ram hỗ trợ	2x DDR5, Maximum Memory Capacity 96GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz
Đồ họa tích hợp	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Khe cắm mở rộng	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Ổ cứng hỗ trợ	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front)
LAN	Realtek^® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA
AUDIO	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 3.2 Gen 1 5Gbps Display Port USB 3.2 Gen 2 10Gbps 2.5G LAN Audio Connectors HDMI™ USB 3.2 Gen 2 10Gbps (Type-C) USB 2.0 Wi-Fi / Bluetooth
Chuẩn Main - Kích thước	Mini-ITX 170mmx170mm
