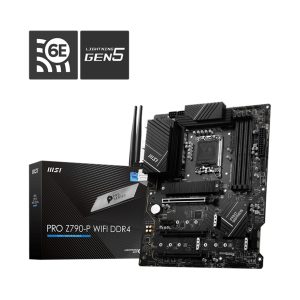

Bo mạch chủ MSI PRO Z790-P WIFI DDR4 (M2, HDMI, Display Port, Type-C)

Mã SP: | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (4 đánh giá)

Bo mạch chủ MSI PRO Z790-P WIFI DDR4 (M2, HDMI, Display Port, Type-C)

Giá gốc: 5.850.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 5.850.000 ₫)

5.850.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: Intel Z790
Socket: Intel LGA 1700
Kích thước: ATX
Số khe RAM: 4 DDR4

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo mạch chủ MSI PRO Z790-P WIFI DDR4 (M2, HDMI, Display Port, Type-C)

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Thương hiệu	MSI
Model	PRO Z790-P WIFI
CPU hỗ trợ	Support Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) LGA 1700
Chipset	INTEL Z790
Bộ nhớ	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Đồ họa	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Khe mở rộng	3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Kho	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel^® 2.5Gbps LAN
Wireless/ Bluetooth	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA
Âm thanh	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
I/O nội bộ	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED	4x EZ Debug LED
Kích thước	ATX 243.84mmx304.8mm

Thương hiệu	MSI
Model	PRO Z790-P WIFI
CPU hỗ trợ	Support Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T) LGA 1700
Chipset	INTEL Z790
Bộ nhớ	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Đồ họa	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Khe mở rộng	3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Kho	4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel^® 2.5Gbps LAN
Wireless/ Bluetooth	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA
Âm thanh	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
I/O nội bộ	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED	4x EZ Debug LED
Kích thước	ATX 243.84mmx304.8mm
