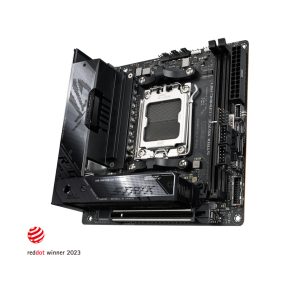

Bo mạch chủ Asus ROG STRIX X670E-I GAMING WIFI 03/2025

Mã SP: | Bảo hành: | Tình trạng: Còn hàng

Lượt xem: | (3 đánh giá)

Bo mạch chủ Asus ROG STRIX X670E-I GAMING WIFI 03/2025

Giá gốc: 12.290.000 ₫

Giá khuyến mãi: 0 ₫(Tiết kiệm: 12.290.000 ₫)

12.290.000 ₫

Mô tả tóm tắt sản phẩm

Chipset: AMD X670
Socket: AMD AM5
Kích thước: Mini - ITX
Số khe RAM: 2

Xem thêm

Add to wishlist

Thông tin sản phẩm Bo mạch chủ Asus ROG STRIX X670E-I GAMING WIFI 03/2025

Xem thêm Thu gọn

Đánh giá (0)

Đánh giá

Chưa có đánh giá nào.

Chỉ những khách hàng đã đăng nhập và mua sản phẩm này mới có thể đưa ra đánh giá.

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	ROG STRIX X670E-I GAMING WIFI
Chipset	AMD X670
CPU hỗ trợ	AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Bộ nhớ	2 x DIMM, Max. 96GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™) OptiMem II
Đồ họa	1 x HDMI^® port* 2 x USB4^® ports support USB Type-C^® display outputs** Supports 4K@60Hz as specified in HDMI 2.1. * VGA resolution support depends on processors' or graphic cards' resolution.
Khe cắm mở rộng	AMD Ryzen™ 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot(s)
Lưu trữ	Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports**** AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. *** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports
Ethernet	1 x Intel^® 2.5Gb Ethernet ASUS LANGuard
Không dây & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB	Rear USB (Total 10 ports) 2 x USB4^® port(s) with Intel^® JHL8540 USB4^® controller (2 x USB Type-C^®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 xUSB 3.2 Gen 2 connector (supports USB Type-C^®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports ROG STRIX HIVE (Total 2 ports) 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C^®) 1 x USB 2.0 port(s) (1 x Type-A) ROG FPS-II C (Total 3 ports) 2 x USB 2.0 header(s) additional 3 USB 2.0 ports**
Âm Thanh	ROG High Definition Audio CODEC ALC4050 - Supports: Jack-detection - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - ROG Hyper-Grounding Technology - ESS^® SABRE9260Q DAC - Silver-plated audio jacks - Optical S/PDIF out port & USB Type-C^® port with indepent power solution - Dedicated audio PCB layers *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE
Cổng I/O sau	2 x USB4^® port(s) with Intel^® JHL8540 USB4^® controller (2 x USB Type-C^®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE) 3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI^® port 1 x Wi-Fi Module 1 x Intel^® I225-V 2.5Gb Ethernet port
Đầu nói I/O nội bộ	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C^® ) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports Miscellaneous 1 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x RTC Battery header 1 x Thermal Sensor header 1 x 2 pin Power_BTN header 2 x USB Type-C^® connectors to Install ROG FPS-II card* ROG FPS-II card 2 x SATA 6Gb/s ports 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel header 1 x Alteration mode switch 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports
Special Features	Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - Aluminum backplate - M.2 Chipset Fan - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) ROG STRIX HIVE 1 x USB Type-C^® connects to Motherboard 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C^®) 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack™) 1 x Headphone jack with Mic in 1 x Mic in jack with Optical S/PDIF out 1 x EZ mode PBO button 1 x FlexKey button 1 x BIOS FlashBack™ button 1 x Volume Control Knob with Mute Button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Tính năng phần mềm	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS^® Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Accessories	Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel Cable ROG FPS-II Card 1 x ROG FPS-II Card ROG STRIX HIVE 1 x ROG STRIX HIVE 1 x USB Type-C^® power connection cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x User guide
Hệ điều hành	Windows^® 11, Windows^® 10 64-bit
Dạng	Mini-ITX Form Factor 6.7 inch x 6.7 inch( 17cm x 17cm)
