Sản phẩm

Bo mạch chủ

Tên hãng

MSI

Model

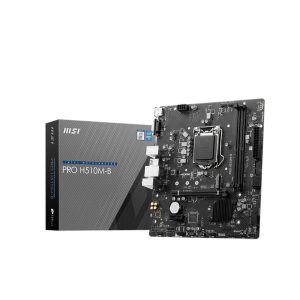

MSI PRO H510M-B

CPU hỗ trợ

Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

Chipset

INTEL H470

Ram hỗ trợ

2x DDR4, Maximum Memory Capacity 64GB

Memory Support 2933/ 2666/ 2400/ 2133 MHz

Supports 1R 2133/ 2666/ 2933 MHz for Intel^® Core™ i9/ Core™ i7 CPU

Supports 1R 2133/ 2666 MHz for Intel^® Core™ i5/ Core™ i3/ Pentium^® Gold and Celeron^® CPU

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel^® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS

1x HDMI™

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

1x D-Sub

Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Khe cắm mở rộng

1x PCI-E x16 slot (Qty)

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Ổ cứng hỗ trợ

1x M.2 (Qty)

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek^® 8111H Gigabit LAN

AUDIO

Realtek^® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

BACK PANEL PORTS

HDMI™

VGA

Keyboard / Mouse

USB 3.2 Gen 1 5Gbps (Type-A)

LAN port

Audio Connectors

USB 2.0

USB 2.0
