Mã sản phẩm

GT-AX11000 PRO

Loại mạng

IEEE 802.11ax

IPv4

IPv6

Phân khúc

AX11000 ultimate AX performance

Công nghệ AX

Có

Tốc độ dữ liệu

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8 (non-detachable)

Truyền / Nhận

2.4GHz 4x4

5GHz-1 4x4

5GHz-1 4x4

Vi Xử Lý

2.0GHz quad-core processor

Bộ nhớ

256MB NAND flash and 1GB DDR4 RAM

Tăng tốc độ

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

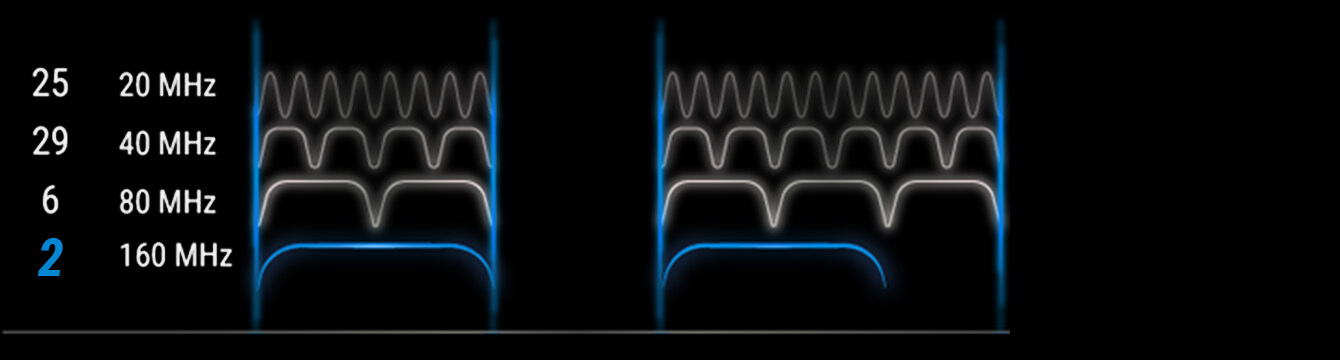

20/40/80/160 MHz bandwidth

Tần số hoạt động

Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2

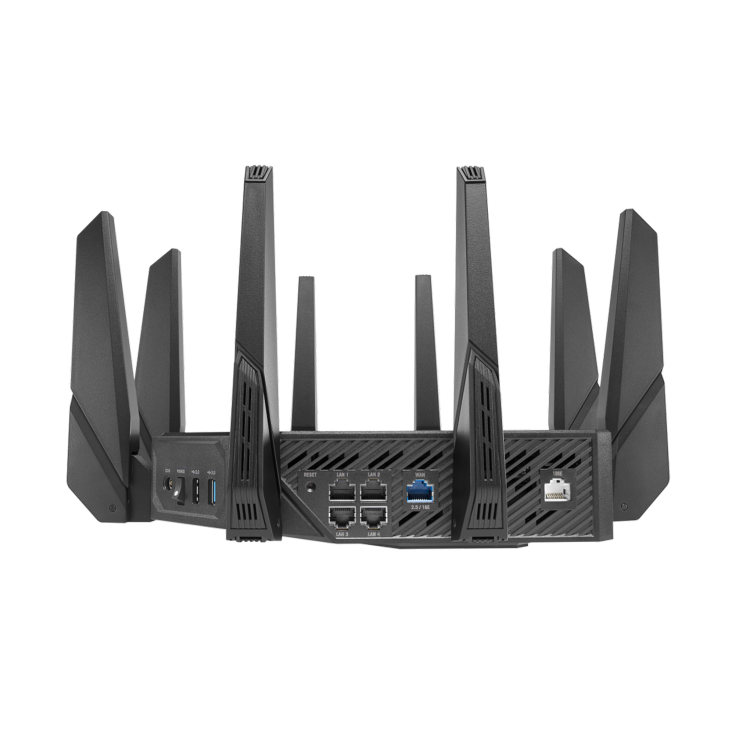

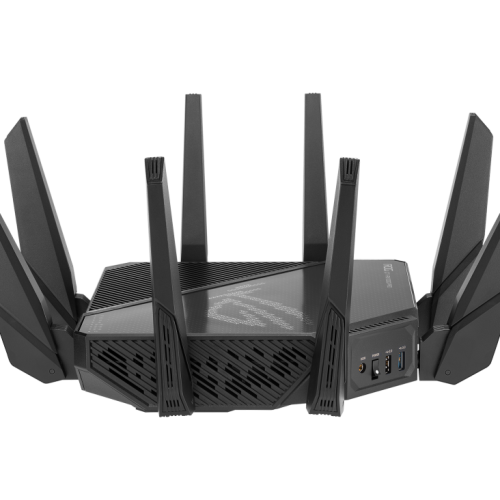

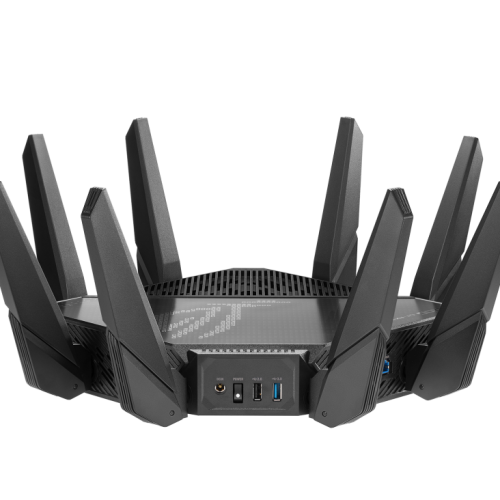

Cổng

1 x 2.5 Gigabit WAN Port

1 x 10 Gigabit WAN/LAN Port

4 x Gigabit LAN Ports

1 x USB 3.2 Gen 1 Port

1 x USB 2.0 Port

Nút

WPS Button, LED Button, Reset Button, Power Switch

LED chỉ dẫn

Power x 1

2.4G x 1

5GHz-1 x 1

5GHz-2 x 1

WPS x 1

10GE x 1

LAN x 1

WAN x 1

Nguồn

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 3.42 A /19.5 V with max. 3.33 A

Phụ kiện

GT-AX11000 Pro WiFi Gaming Router

RJ-45 Cable

Power Adapter

Quick Start Guide

Warranty Card

Trọng lượng

2180g

AiMesh

AiMesh

Primary AiMesh router

AiMesh node

Ứng dụng Router

ASUS Router APP

Chế độ Gaming

Game Boost/acceleration

Game Radar

WTFast

UU boost

ROG_First

OpenNAT (Game Profile)

Alexa

Hỗ trợ

AiProtection

AiProtection Pro

Router Security Assessment

Malicious site blocking

Two-Way IPS

Infected Device Prevention and Blocking

Parental Control

Parental Control

Parental Control Customized Internet schedule

Maximum Parental Control profile : 64

Maximum Parental Control content filter rule : 64

Traffic Control

Adaptive QoS

Bandwidth Monitor

Bandwidth limiter

Maximum Bandwidth limiter rule : 32

Traditional QoS

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

Traffic analysis period : Daily, Weekly, Monthly

Website history

Wireless

IPv6

MU-MIMO

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System

UTF-8 SSID

Guest Network

Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

WPS

Wi-Fi MAC address filter

Maximum MAC filters : 64

Wireless scheduler

Airtime fairness

RADIUS Client

Universal beamforming

WAN

Explicit beamforming

Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP

Dual WAN

WAN Aggregation

3G/4G LTE dongle

Android tethering

Port forwarding

Maximum port forwarding rule : 64

Port triggering

Maximum port triggering rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

Let's Encrypt

Safe browsing

DNS-over-TLS

LAN

DHCP Server

IGMP snooping

IPTV

LAN Link Aggregation

Manually assign IP address

Maximum manually assign IP address rule : 128

VPN

VPN Client L2TP

VPN Client OVPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server OVPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove disk

AiCloud

Download master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder privileges

Administration

Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

Operating system : ASUSWRT

Free OS upgrade

Firewall

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL)

SSH

Configuration backup and restore

Diagnosis tools

Feedback system

System log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Security Scan

Auto Firmware Update
